Floor Grille

Floor Grille

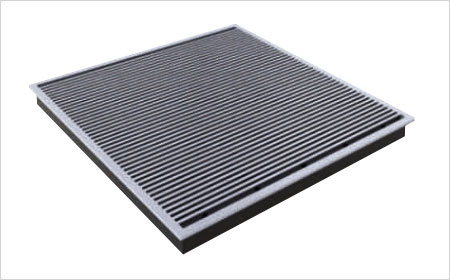

Heavy-duty Floor Grille by Cosmos Air Distribution Products, featuring a square metal frame with parallel bars for data center cooling and raised-floor HVAC air distribution.

COSMOS Floor Grilles are engineered for efficient underfloor air distribution in offices, data centers, and raised floor applications. Designed for superior airflow performance, durability, and precise air volume control, they are available in a wide range of configurations to suit light, medium, and heavy-duty installations.

Product Introduction

COSMOS Floor Grilles is one of the most established and advanced ranges of floor grilles available in the industry today. COSMOS is redefining data center airflow management in Underfloor Air Distribution. Our wide range of custom manufactured data center floor grilles and controls which work together to maximize your data center’s performance. Designed, principally, to replace 600 mm square tiles in raised access floor systems the units are suitable for both light to medium grade installations such as offices as well as heavy grade installations such as computer floors. Floor grille assembly can handle supply air or alternatively extract air and be fitted with rear opposed blade damper assembly for air volume flow control.

Relocation of the grille to another area is simply carried out by lifting and moving the entire floor grille to the desired new position.

Model FL heavy duty tile replacement panel floor grille is designed to withstand a light loading and or foot traffic. Constructed entirely from aluminum extrusions and having a reinforced frame combines strength with air distribution performance, ideal for use in most general residential premises, private houses and offices, general offices and elderly residences where no heavy equipment is present.

Enhanced cooling capabilities and control

●  Accommodate a range of cooling solutions while increasing efficiency and heat load capacities
●  Easily incorporate redundant cooling with a single or multiple cooling strategies
●  Flexibility to incorporate the most energy efficient design opportunities for cooling data centers
●  Easily adapt to technological and client changes over the data center’s life-cycle at low cost

Features

●  Suitable for most flooring systems.
●  Easy “Drop in” installation.
●  Convenient damper adjustment.
●  Floor compatibility – Matches most raised floor systems based upon 600mm x 600mm module

Finish

●  Antistatic Powder Coated.
●  Standard finish RAL 9016. Optional finishes available on request.
●  Opposed blade damper made from extruded aluminum with matt black powder coated paint finish

Types

FL-001 and FL-001-D Heavy Duty Aluminium Floor Grille by Cosmos Air Distribution Products, featuring parallel bars for raised-floor HVAC cooling.

Model FL-001 & FL-001-D

●  Heavy duty constructed from aluminium extrusion
●  Tested for 2.3 ton breaking load
●  One way deflection
●  44% Free area provides 1400cfm @ 0.13 in of WC

FL-006 and FL-006-D Aluminium Floor Grille by Cosmos Air Distribution Products, featuring closely spaced linear bars for underfloor HVAC airflow.

Model FL-006 & FL-006-D

●  Heavy duty constructed from aluminium extrusion
●  Tested for 2.3 ton breaking load
●  One way deflection
●  35% Free area provides 1100cfm @ 0.03 in of WC

FL-154 and FL-154-D Heavy Duty Floor Grille by Cosmos Air Distribution Products, featuring four rectangular grille sections for raised-floor HVAC air distribution.

Model FL-154 & FL-154-D

●  Heavy duty constructed from aluminium extrusion
●  Tested for 2.3 ton breaking load
●  One way deflection
●  35% Free area provides 800cfm @ 0.04 in of WC
